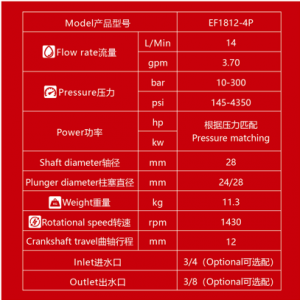

Corrosion Resistant High Pressure Pump, High Temperature Resistance 85 Degrees Industrial Pressure Cleaning Pump(EF1812-4P)

 Crankcase:

Precision cast oxidation treated surface of the crankcase.

High and low pressure water seal components:

The high and low pressure water seal design of the “U”type special material enhances the performance of the water pump and improvesits service life. The plunger support guide ring ensures the coaxiality of theplunger, extending the service life of the water seal and plunger.

Pump head assembly:

Selected stainless steel material, new and efficient structuraldesign, high strength, no pores, long service life, and safe operation.Reinforced 8-bolt fastening, 18mm, grade 12.9.

Check valve assembly:

The valve cage is made of special materials that are sturdy anddurable. The stainless steel poppet valve and spring extend its service life.The disassembly and assembly of one-way valve components is simple and easy tomaintain.

Pommel:

Precision machined hard solid ceramic plungers, as well asthickened SST limit bolts, provide longer service life, better durability andapplicability.

Bearing:

Large tapered ball bearings ensure the concentricity of thecrankshaft connecting rod and ensure stable operation of the water pump.

Bearing Block:

Precision machining ensures coaxiality and concentricity.

Crank axle:

Precision forging process and hardening treatment ensure thestrength, service life, and durability of the crankshaft.

Oil viewing window:

The oil viewing window located behind the water pump isconvenient for checking the oil level and easy to repair. Precision die-castingand high-quality sealing rings ensure the sealing effect of the rear cover.

Oil seal and O-ring:

A better crankcase oil sealing system, with stainless steelsprings for oil seals to ensure sufficient tension.

Plunger connecting rod:

Super strong alloy material, split structure, higher loadstrength, longer service life, ensuring safe and stable operation.

Liquid inlet medium:

Acidity, alkalinity, temperature 85 ºC.
